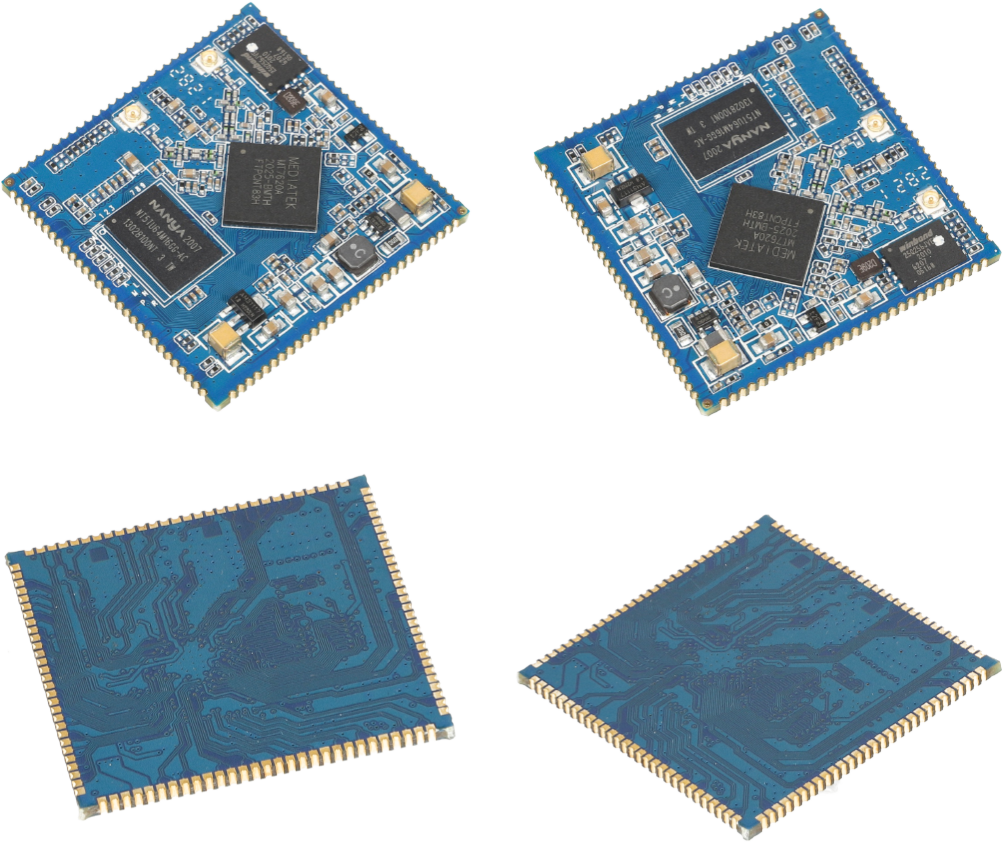

The MT7620 router-on-a-chip includes an 802.11n MAC and baseband, a 2.4 GHz radio and FEM, a 580 MHz MIPS® 24K™ CPU core, a 5-port 10/100 switch, and two RGMII.
The MT7620 router-on-a-chip includes an 802.11n MAC and baseband, a 2.4 GHz radio and FEM, a 580 MHz MIPS® 24K™ CPU core, a 5-port 10/100 switch, and two RGMII.
The MT7620 includes everything needed to build an AP router from a single chip. The embedded high performance CPU can process advanced applications effortlessly, such as routing, security and VoIP.
The MT7620 also includes a selection of interfaces to support a variety of applications, such as a USB port for accessing external storage.
CPU:7620A Embedded MIPS24KEc (580 MHz) with 64 KB I-Cache and 32 KB D-Cache
802.11 b/g/n 2T2R 2.4 GHz with 300Mbps data rate.
16-bit DDR2 up to 256 Mbyte (optional: 64Mbyte/128Mbyte/256Mbyte)
SPI Flash:16MByte(optional: 16Mbyte/32Mbyte/64Mbyte)
Nand Flash:512Byte page(max 64Mbyte), 2KByte page(max 1Gbyte),need
teternal extend.
1x USB 2.0, 1x PCIe host/device
5-port 10/100 SW and two RGMII
I2C, I2S, SPI, PCM, UART, JTAG, MDC, MDIO, GPIO
Hardware NAT with IPv6 and 2 Gbps wired speed
16 Multiple BSSID
WEP64/128, TKIP, AES, WPA, WPA2, WAPI
QoS: WMM, WMM-PS
WPS: PBC, PIN
Voice Enterprise: 802.11k+r
Firmware: Linux 2.6 SDK, Openwrt/Lede
Size:40mm*40mm*4.25mm
